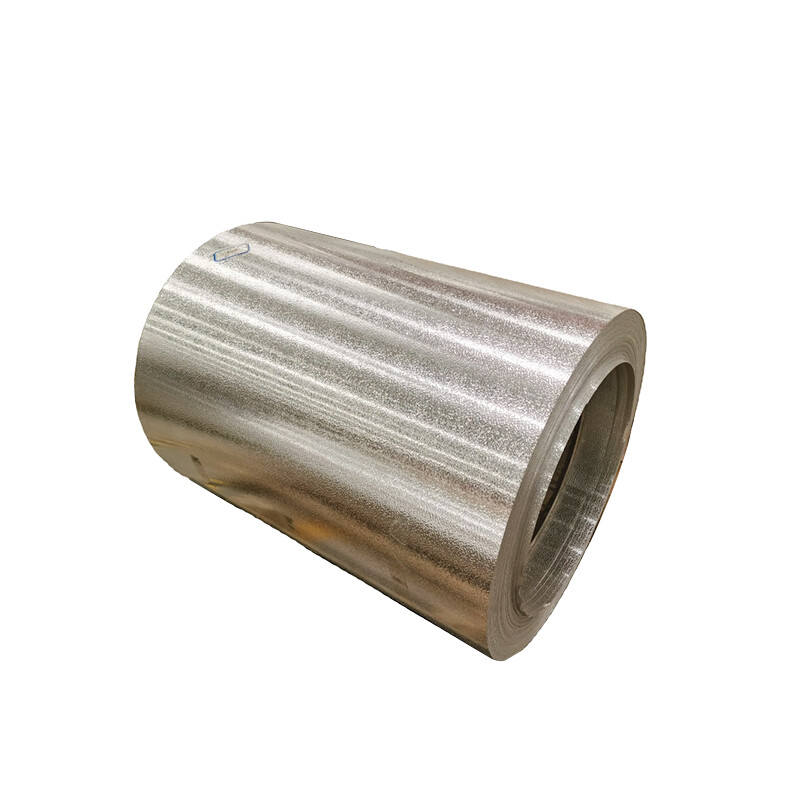

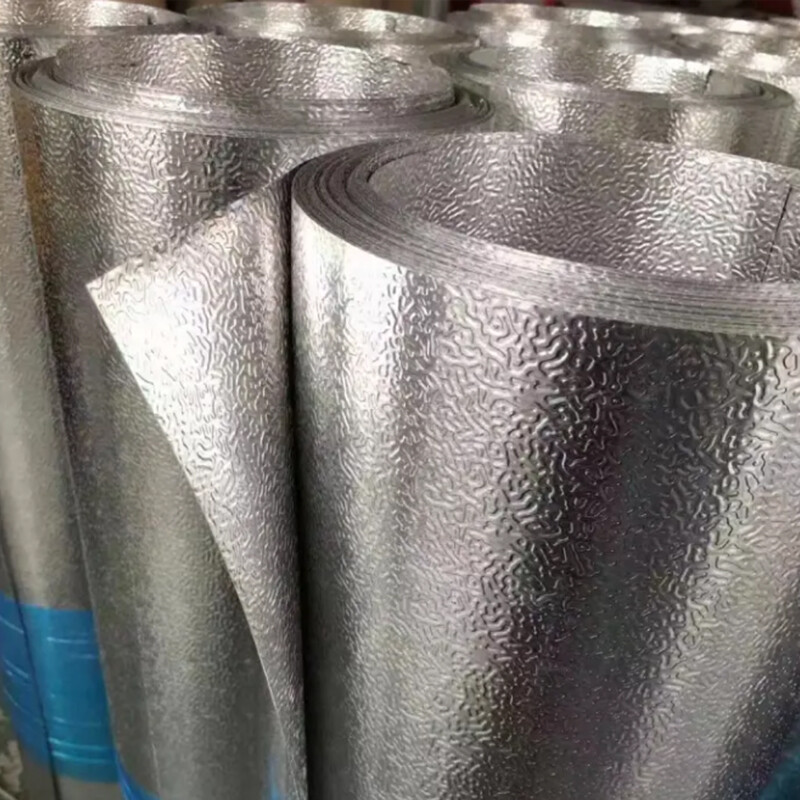

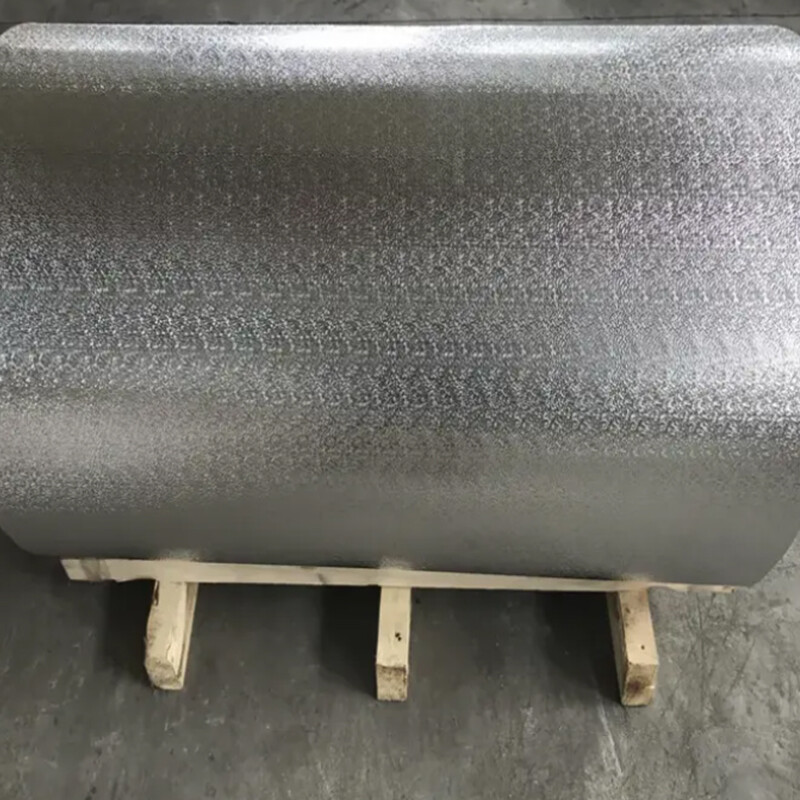

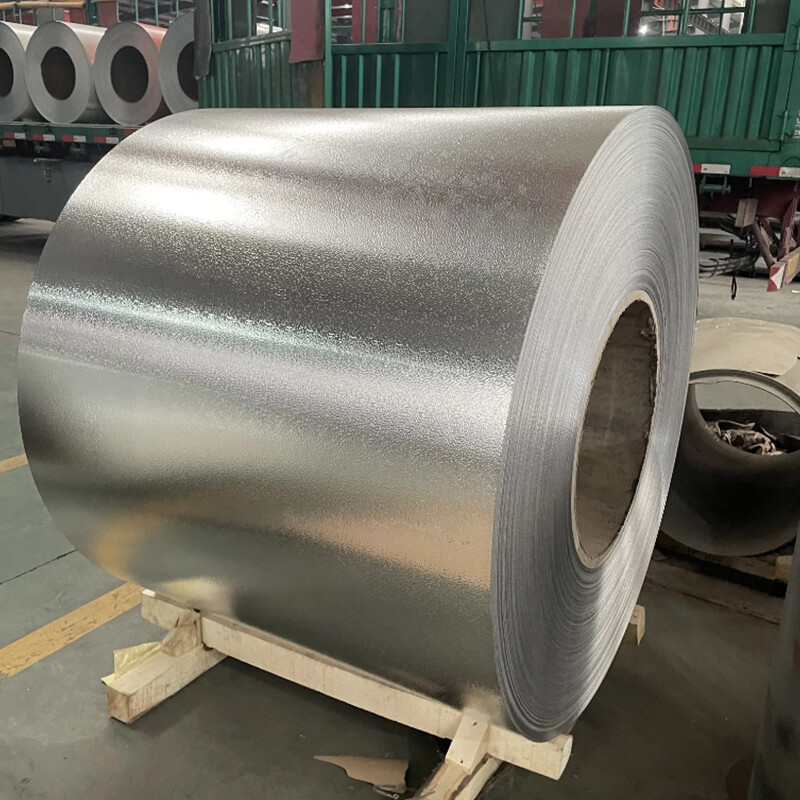

Aluminium Checker Sheet Coil

High product quality, passed ISO9001 quality management system certification and CE certification.
Strong production capacity, complete processing plant equipment, and strict quality control system.

+86-13346342168

+86-13346342168

manager@rrsdmetal.com

◉ Product Details

Aluminum pattern plate, also known as aluminum flooring, aluminum diamond plate, aluminum anti-skid plate, and aluminum dubar plate, is a metal plate with regular patterns on one side and protruding diamonds or lines on the other side without any features. The aluminum base plates of Chinalco aluminum pattern plates are aluminum plates that meet national standards, ensuring the durability of the aluminum diamond plates.

Basic Info.

Aluminum Coil
Aluminium Alloy	Thickness	Width	Temper
	(mm)	(mm)
A1050,A1060,A1070,A1100	0.2-8.0	20-2300	O,H12,H14,H16,H18,H22,H24,H26
A3003,A3004,A3105	0.2-8.0	20-2300	O,H12,H14,H16,H18,H22,H24,H26
A5052,A5005,A5083,A5754	0.2-8.0	20-2300	O,H12,H14,H34,H32,H36,H111,H112
A6061,A6082,A6063	0.2-8.0	20-2300	T4,T6,T651
A8011	0.2-8.0	20-2300	O,H12,H14,H16,H18,H22,H24,H26
Material process	CC AND DC
Customerize size	Size can be produced as per clients requirement
Surface	Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish,Anodizing
	Mirror,Brush,Perforated,Tread plate ,Corrugated etc
MOQ per size	1 ton
Delivery time	Within 25 days after receipt the lc or deposit
Material Quality	Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents
	scratches etc ,A+++ quality, production process passed sgs and bv inspection
Application	Construction ,Building,Decoration ,Curtain Wall ,Roofing,Mould,Lighting,
	curtain wall, ship building,Aircraft,Oil Tank ,Truck Body etc
Packing	Standard export worthy wooden pallets
	and standard packing is about 2 tons/pallet
	Pallet weight also can be as per client's requirement

Product Description

1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%)
Purity	1050 1050A 1060 1070 1100
Temper	O/H111 H112 H12/H22/H32 H14/H24/H34 H16/ H26/H36 H18/H28/H38 H114/H194, etc.
Specification	Thickness≤30mm; Width≤2600mm; Length≤16000mm OR Coil (C)
Application	Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc.
Feature	Lid Shigh conductivity, good corrosion resistant performance, high latent heat of melting, high-reflectance, well welding property, low strength, and not suitable for heat treatments.

2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element)
Alloy	3003 3004 3005 3102 3105
Temper	O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/ H36 H18/H28/H38 H114/H194, etc.
Specification	Thickness≤30mm; Width≤2200mm Length≤12000mm OR Coil (C)
Application	Decoration, heat-sink device, external walls, storage, sheets for construction, etc.
Feature	Good rust resistance, not suitable for heat treatments, good corrosion resistant performance, well welding property, good plasticity, low strength but suitable for cold working hardening

3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element)
Alloy	5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06
Temper	O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc.
Specification	Thickness≤170mm; Width≤2200mm ; Length≤12000mm
Application	Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile Body Sheets, Automobile Inside Board, The Protective Cover On Engine.
Feature	All the advantages of normal aluminium alloy, high tensile strength & yield strength, good corrosion resistant performance, well welding property, well fatigue strength, and suitable for anodic oxidation.

4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements )
Alloy	6061 6063 6082
Temper	O F, etc.
Specification	Thickness≤170mm; Width≤2200mm ; Length≤12000mm
Application	Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components, Transport Ship, Semiconductor Equipments, etc
Feature	Good corrosion resistant performance, well welding property, good oxidability, easy to spray-finishing, well oxidation coloring, good machinability.
